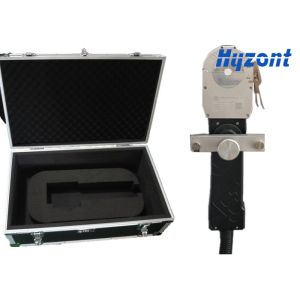

    Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm

    Ask Lasest Price
    Brand Name : Hyzont
    Model Number : MWF-40/80/120
    Certification : CCC/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 sets a Month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm

    Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm


    Features and advantage of Closed Weld Heads

    • Features and advantage of Closed Weld Heads
    • All Key Parts are imported insulation and heat-resisting materials
    • Compact and handy closed Welding Head which made by aluminums alloy,light and durable
    • Germany Original Rotator Motor, Welding process stable and reliable
    • Adjustable parameter during welding process for some special welding requirements
    • Built-in various welding head parameters for accurate motion control
    • Water circuit cooling design for long time working
    • Unique design of inner orientation gas circuit
    • Quick-install Clamps, easy to use

    Hydraulic Fuel tube and pipe Orbital Welding Machine With Handy Closed Welding Head OD12-76mm


    ModelMWF-40MWF-80MWF-120
    MaterialCarbon steel, Stainless Steel, Titanium Alloy
    Tube FittingStraight tube, Pipe flange, Elbow butt joint;
    Welding ProcessTIG/GTAW (no wire feeding)
    Tube OD(mm/inch)

    6~38.1mm

    1/4"~1 1/2"

    19.05~76.2mm

    3/4"~3"

    38.1~114.3mm

    1 1/2"~4 1/2"

    Tube Wall Thickness(mm)≤3mm≤3mm≤3mm
    Tungsten OD(mm)1.61.6-2.41.6-2.4
    Rotating360 degree free rotated and Auto reset ;all position welding;
    Rotation speed(rpm)0.3~60.2~4.50.15~1.9
    Protective GasArgonArgonArgon
    CoolingWaterWaterWater
    Cooling Flow(ml/min)1000ml/min1000ml/min1000ml/min
    Cable Length6m6m6m
    Main Dimension(mm)
    Weight(kg)2kg3kg6kg
    Dimension(mm)377*38*100436*38*175497*230*57
